The Anatomy Of A Rifle Scope

Last Updated on


By David Link

If this is your first rifle scope purchase, then you need to familiarize yourself with all the basic parts of a rifle scope. Even if this isn’t your first purchase, it never hurts to brush up on your rifle scope anatomy if you’re not familiar with a certain term. At it’s most basic description, a rifle scope is a tube with a lens fixed at each end of the tube. Of course a rifle scope is more complex than just that, and there are other parts that adjust magnification and fine tune the position of the reticle. We’ve put together a series of close ups using several of our popular rifle scope brands so you can get a better idea of what each rifle scope part is called.

Let’s walk through from the first point of contact for your eye, the ocular lens, to the other end of the scope, the objective lens, that looks out at your target.

The Parts Of A Rifle Scope

Ocular Lens

The ocular lens is the piece of glass that faces the shooter while he aims. The ocular lens is usually smaller than the objective lens, and it focuses the light gathered by the other end of the rifle scope, the objective lens, into the eye of the viewer. The ocular lens can be coated with several different finishes to repel water and encourage light transmission, but keep in mind that certain entry-level scopes may not coat this lens.

View of the ocular lens on a Vortex Razor HD 5-20x50mm (MOA) rifle scope.


The eyepiece is the portion of the rifle scope that holds the ocular lens in place. In addition, many rifle scope models feature dials on the eyepiece that allow you to adjust the focus of the reticle to provide the sharpest level of clarity possible while viewing your target.

Eyepiece on a Leupold VX3 3.5-10x40mm CDS rifle scope.

Power Ring

Certain rifle scopes allow you to adjust the magnification of the scope, and this is accomplished by the power ring. By dialing the power ring up and down, the operator can zoom in and out on their target. The minimum and maximum level of magnification depends on the specs of the scope. You’ll see this outlined as the first number in a scope’s specs. For example, the below diagram has a 2-12x magnification level. This means that when the power ring is set to the lowest magnification, objects appear 2 “x” or times closer than the human eye. If the magnification is increased all the way up on the power ring, objects will then appear 12 “x’ or times closer than what the human eye sees. You can also dial a power ring up somewhere in the middle of the magnification range to preserve some field of view while aiming. Note that fixed magnification scopes, or scopes that only have one set magnification that can’t be adjusted, will not have a power ring.

The power ring noted on a Leupold VX-6 2-12x42mm CDS-ZL rifle scope.

Scope Tube

The scope tube bridges the objective lens and ocular lens, and it is usually one solid piece of metal. The important aspect to note about scope tubes is that they come in two different sizes: 30mm and one inch. The scope tube is where scope rings or bases are fixed to, and then these items are attached to the firearm so the scope stays in place. Always remember that 30mm scope tubes can only be used with 30mm rings and one inch scope tubes can only be used with one inch rings. Failure to pay attention to this detail could result in damaging the scope.

Scope tube close up on a Nikon Prostaff 5 3.5-14x50mm rifle scope

Windage Turret

The windage turret allows you to adjust the horizontal alignment of your reticle and is located on the right side of the scope. This is done in small increments or “clicks.” Some scopes allow you do adjust the turret by hand while others require the use of a small coin or screwdriver. Typically windage and elevation adjustments are measured either in MOA (minutes of angle) or MRAD (milliradian) measurements. Certain companies will allow you to choose the level of adjustment that you want a click to represent on a turret. For example, Nikon allows the shooter to pick either fine or course knurling knobs as part of their new Custom XR Turret packages. Finer turrets will have smaller increments between clicks while larger knobs will adjust at larger frequencies than the finer turrets.

Windage turret on a Nikon Monarch 3 2.5-10x50mm (BDC) rifle scope.

Elevation Turret

Similar to the windage turret, the elevation turret sits on top of the scope body and provides vertical adjustment for your reticle. Typically the windage and elevation turrets on any given scope operate in the same increments.

Close up of an elevation turret on a Vortex PST 2.5-10x44mm (MOA) rifle scope.

Parallax Error Adjustment

Certain rifle scopes have a third turret that adjusts for parallax error, and it is placed on the left hand side across from the windage turret. This isn’t always found on rifle scopes because parallax adjustment only becomes an issue when you’re shooting very long distances. Typically most rifle scopes are zeroed at 100 yards (shotgun scopes at 50 yards), but if you dial the magnification level of certain scopes way up, this creates what is known as parallax error. When you move your eye side to side while looking through the rifle scope, the position of the reticle will appear to change. You will know that the parallax is corrected when your target appears in focus and the reticle does not move as your eye position changes. Parallax error is a complex concept, and if you’re planning on dialing magnification way up above 10x, then you should do more research on what causes the error and how to correct it.

Objective Bell

The objective bell is the portion of the rifle scope that gradually increases from the one inch or 30mm scope tube up to the size of the objective lens. The objective bell is also the piece of hardware that holds the objective lens in place. Rifle scopes with extra large objective lenses (50mm+) may have grooves in the objective bell / objective lens so that the scope fits closer to the rifle while still providing the extra light-gathering ability of larger objective lenses.

Objective Bell_VX2_3-9x40_CDS

Objective Lens

The objective lens is the forward facing lens that is tasked with gathering light around the target down range from you. Objective lenses are generally larger than the ocular lens, and their diameter is measured in millimeters. You can see the size of the objective lens noted in the specs of any rifle scope. It comes after the “x” that measures magnification power, and at times rifle scope specs will include the “mm” while other times people will shorten the description by omitting the “mm.” For example, the rifle scope noted below has a 50mm objective lens, but you could also see this scope described as “3.5-10×50.” Generally speaking, objective lenses can be as small as 20mm and as large as 50 to 60mm. Larger objective lenses are capable of gathering more light and therefore presenting a brighter picture for the user, but larger objective lenses will also increase scope weight and reduce the handling of the rifle / scope combo while in the field. The situation where very large objective lenses will really shine is in long distance shooting, but if you’re not planning on shooting much over 100-200 yards, sometimes a 50mm lens can be overkill. Quality rifle scopes will always coat the objective lens with several different finishes to increase light transmission and repel / bead water.

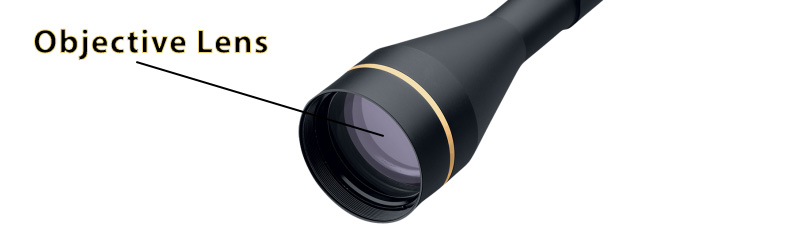

Close up of the objective lens of a Leupold VX3 3.5-10x50mm CDS rifle scope.
